During many years of experience, Muyang has developed the single-screw extuder which has three outstanding features with intelligence, high efficience and energy saving. Now Muyang has the biggest customer training center in its industry and hold multiples training activities for customers every year. Customers, in accordance with their own demand, can select and send persons to attend training in techniques and equipment operation. Following is the feed machinery and its details.



High-efficient extruder for aquafeed, food, pet food and raw material treatment.

Simple operation: Leading extrusion technology and intelligent control; by-pass for avoiding blockage; simple operation, precise and reliable.

High efficiency: DDC conditioner and optimal extruder screw & chamber, minimum SME input; recoverable energy, maximum energy utilization; unique suspending cutter, replacement and adjustment without downtime.

Wide production range: Controllable temperature, pressure and density thanks to modularized design and many add-ons, minimizing reconfiguration acquired.

Satisfying product quality: Uniform extruded pellets with high fat absorption, unique visual appearance, environment friendly and sustainable.

Muyang is so glad to show its new and great feed machinery here, today the product would be the top seller among all Muyang’s equipments – Muyang water-drop 968 hammer mill.



***Adopting internationally advanced technology.
***It is really waterdrop-type hammermill because of the design of the grinding chamber, the structure of the grinding chamber make the capacity increasing with 25%;
***The conversion of the grinding and micro-grinding would be come true because of the optimized arrangement of the hammers and the adjustable clearance between the hammers and the screens;
***The accurate detection include the dynamic balance experiment ensure the runing is stable, the noise is low and the performance is very ideal;
***The key parts are imported, so the working life is long and the maintenance cost is low;
***Equipped with the advanced impellertype or belttype feeder, the performance is very liable;
***The operating door is movable and could be openned completely, the pressing structure of the screen is coordinated type;
***Widely used for manufacturing high-grate feed of livestock and poultry, aquatic feed and used in grain distillery, citric acid factory, food factory etc.

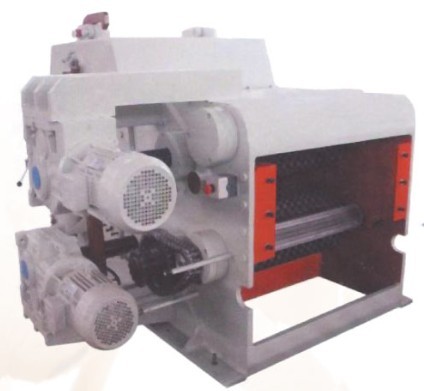

Wood chippers are used by those in the agricultural industry during property and land maintenance, or to aid in clean up after a storm or meteorological event. Typically, wood chippers are comprised of several distinct parts, including a hopper, a collar, a chipper, and a collection bin.



Wood chippers typically have two separate chutes for processing wood. The first chute, the smaller of the two, shreds branches into chips. The second, larger chute features blades and additional devices, such as hammers, to turn excess plant material (such as leaves) into mulch.

Based on the kind of blades within the chipper, a user can determine the type and thickness of wood chipper whether is capable of handling. Typically, the larger the wood chipping machine, the larger the load it can handle. Blades can either function on separate shafts or intermesh. If several blades are rotating on independent shafts, the wood will be repeatedly cut down the branches as they are passed through the blades at a fast pace. Intermeshed blades are somewhat slower, but are somewhat self-feeding as they draw the branches into the blades themselves. Additionally, intermeshed blades produce consistently sized chips. Muyang wood chipper is with excellent quality and the best cost performance, and suitable for wood log, brushwood, board etc.

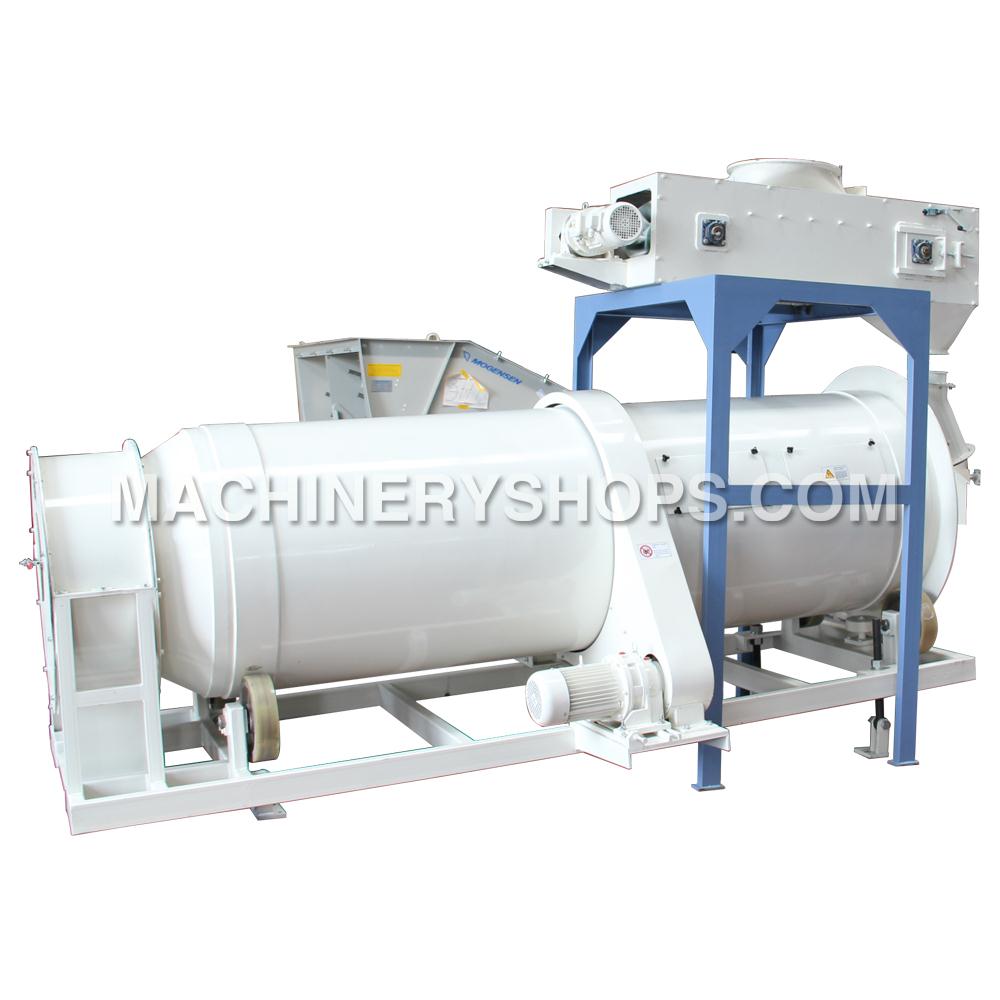

SYPL Gravity Continuous Liquid Coater is widely used coating oil, enzyme preparations, vitamins, antioxidants and amino acids etc. on to the surface of pellet feeds and extruded feeds.

Particulate material through the buffer hopper material level detection, according to the material state detection signal to determine whether the feeding device and discharge conveyor operation. Then, there is the difference, said re-calculated metering data, automatically adjust the frequency of the feeder, the final acceptance of the drum rotation so that the material and the flow of exports, while the injector. Add the amount of liquid sprayed is conducted based on the percentage of the actual flow of granular materials, the executing agency is the automatic adjustment of the servo control valve, the valve opening greater the pressure is higher. The number of nozzles are open oil flow according to the ejection control.

On the principle of differential-gravity batch weighing, the accuracy of continuous dynamic weighing is guaranteed by static weighing method, in order to ensure the precise weighing of flowing solid and liquid materials. The preset liquid amount to be added is 0.5～12%, which can be added freely if needed. Weighing accuracy of liquids ＜1%, weighing accuracy of granules ＜1%.

More feed machinery on Machineryshops.com.

Mixing is an important part of the production and processing of ingredients, but people rarely take this into account. In most cases, people do not focus on the mixer. We should know that the feed needs nutrition, however, if those ingredients have not been mixed properly, then the important formulation and quality-control system would lose the expected results.



The principle of Muyang Twin-shaft paddle mixer is fast, and compared with ordinary horizontal mixer, it accounts for a small space with lower power consumption which can be full feed to suit different job requirements and its relief hole can effectively avoid the airflow material impact on production when you add water, oil and other liquids. There are many benefits on the mixing machine. It can be equipped with injection cleaning system to avoid cross-contamination of materials and also can be observed with large doors for easy maintenance, effectively reducing the dust concentration. The machine also has a short mixing period (45～60 s/batch) and high mixing homogeneity (CV≤5%, may be up to 3%).

Muyang
--feed machinery, feed mill, steel silo, steel structure, biomass machine, grain processing machine
Website：http://www.machineryshops.com/

Muyang equipment is of natural advantages and good price. In the Philippine market, similar products of European or US brands are much more expensive than Muyang's, but for the quality and performance, the difference is not so obvious. It is such a natural thing that the customers prefer those products which are more cost effective. On the other hand, Muyang manufactures complete line of equipment, which i s a distinguished advantage over the other suppliers.

If the customer goes to buy one machine from one European brand, he may need to get other kind of machines from another company. But if he chooses Muyang, he can get everything he needs just from one single competent source. Besides the complete production line Muyang also fabricates other things or elements needed by its turnkey project, including steel silo, steel structure, etc. This makes it all the more important for the customers to rely on Muyang to provide the perfect coordination of the individual steps of project development from planning right up to commissioning of the turnkey plants. Additionally, Muyang can offer all kinds of after-sales services at the same time, which also helps our customers to save time and cost due to the deals with different companies.

Backing to the price issue, as an agent company with so many years' experience, we know, it goes without saying, that if one company or product takes the advantage only in price, it is no way for them to take enough shares from the market, that's why I just emphasized the good services Muyang offers. Muyang's services are something strong and comprehensive rather than single ones, which you can see it clearly from the so called "one-stop" service and customized services. Being a good listener, Muyang can always define and turn those improvement advices or specific requirements from customers into actual products or solutions, thus meeting customers' demands to the greatest extent. And the "one-stop" service makes our customers feel so convenient, and then wins great market shares for Muyang.

Muyang always puts customers' demands in the first place, and takes the initiative in fulfilling them. I think that's essential to the success. I can give you two examples. The first, Muyang has already considered the cost-saving performance when it provides all feed machinery solutions to customers. The product itself is designed to be cost-saving, which can produce more feed with less power. And the equipment installation or the project implementation also takes shorter time, which saves the time cost, and makes the return on investment much higher. The second example shows more concerns to the details from Muyang. Just like other companies, Muyang offers extra accessories to customers, but the difference is that, considering some of the customers may have equipment from other suppliers, Muyang not only offers the accessories of its own but also those of other brands. In my opinion, there is no reason for a company who pays attention to such tiny details not to have its own place in the market.

The twin-screw extruder machinery has more advantages for producing extruded small aquafeed pellets. Its adjusting range is wider than the single-screw extruder, and also has better material adaptability. However, the single-screw extruder can also produce good quality small pellets if under good control.

Selection and installation of the cutter

Whether the selection as well as installation of the extruder cutter are reasonable or not is decisive to the appearance of the extrudates. It is recommended to adopt 0.3 mm thick soft knives with good elasticity for cutting small pellets. When installing the knives, each of them should be tightly against the die plate and a little bit curved.

It is suggested to adopt a cutting device which the clearance between the cutting blade and die plate is adjustable during production operation. Since the blade will be worn after being used for a period of time, which will leave a small prick on the pellet edge, influencing the trimness as well as the appearance of the pellet. With an adjustable cutting device, the clearance can be adjusted during operation without stopping, ensuring the extruder to work stably for a long time.

Take the single-screw extruder (power of main motor: 160KW, screw diameter: 165mm) as an example, when producing small pellets with a Ø1.0 mm-hole die plate, a cutting device with ten or twelve knives is usually used, and its rotating speed is about 1200～1400 rpm. If there are impurities blocking the die holes, the rotating speed of the cutter must exceed 1500 rpm so as to ensure the uniformity of pellets. So, as for a Grade 4 motor, the upper limit of frequency of an inverter must be over 50HZ.

Extrusion system cleaning

If the feed machinery has been made a halt for more than 8 hours, it is necessary to clean the whole extrusion system thoroughly, including the anti-bridging feeding bin, the feeding auger, the conditioner and the principle machine of extruder.

When cleaning the anti-bridging feeding bin and the feeding auger, it is necessary to empty the material in them, after that, blow compressed air into them for completely cleaning. Do not use tools like besom or brush for cleaning, because the fibrous components of such tools are possible to fall down and bring in more impurities.

When cleaning the conditioner, if the residues on the inner wall of the barrel and on the paddles are dry, use a scraper to remove them, and then flush them with compressed air for complete cleaning. If the residues are relatively wet, only the dry residue on the surface of cylinder's inner wall needs to be scraped and removed out of the conditioner.

STHJ Paddle Molasses mixing machinery is widely used in feed, cereal, food, chemicals, medicine and pesticide industries, and suitable for mixing mash feeds (adding molasses) in feed mills, so that all the ingredients can be uniformly distributed and the quality of the compound feeds can be ensured.



STHJ Paddle Molasses Mixer consists of a rotor, a machine body, a bearing support, big and small belt pulleys, and guard shield. The power is transferred from the motor to the rotor via sprocket. The molasses is blown into the mixer by steam. The paddles are regularly staggered on the rotor along axial and circumferential directions in a certain angle to the rotor, so that a helical surface is formed between the paddles. When working, the rotor brings the feed to roll over and meantime push them to the discharging outlet.

Features
─ STHJ 35×200A Paddle Molasses Mixer is a horizontal continuous type mixer;
─ It is featured of new rotor structure, good mixing homogeneity and no any dead angle during mixing;
─ The clearance between the rotor and the mixing machine casing is adjustable;
─ It is equipped with a clearing gate to facilitate cleaning inside the working barrel;
─ With a molasses intake in it, the machine is characterized by reasonable structure, pleasant appearance, and easy operation and maintenance.

The article is from : http://muyangsales.edublogs.org/2014/01/06/sthj-paddle-molasses-mixer/
