GKLW series drum cooler is the auxiliary product with the home made extruder machinery and imported extruder. It is mainly used in cooling of the high temperature materials after expanding (the expanded corn and same similar materials are not included). This type cooler is applicable for pellet feeds as well as powdery feeds.



The materials are cooled during tilting motion under the influence of the natural cooling wind and the counter motion of materials. The high temperature expanded materials can be cooled down to under the room temperature +(4-8 °C), the dehydration rate is higher than 3%, so it helps to produce high quality expanded feeds, extend the storage time of pellets and increase economic efficiency.

The reducing motor of the feed machinery runs to drive the drum for rotating while the high temperature expanded feeds entering into the drum by the feeding inlet. The tipping plate turns up the materials, natural cooling wind enters from the discharge hole, the wind and materials contact with each other completely, hot wind is expelled from the air outlet, so the materials will be getting cooler.

The article is from : http://muyangmachineryshops.blogspot.com/2013/12/muyang-gklw-series-drum-cooler.html

Muyang Jet Filter Dust Collector belongs to a bag-type, internal filtering, high-pressure, reverse air jet, impulse dust collector, featured by reliable performance, high efficiency dust collecting, low discharge concentration, easy operating and maintenance, pretty appearance, compact structure and small floor area. It is applicable for dust control in industries of cereals and feed processing, feed machinery, metallurgy, building materials and cement, and dust cleaning or recycling and filtering in pneumatic conveying or aspiration duct collecting in other workshop sections. It is used for improving work environment, work efficiency and product quality etc.



With advanced oval filtering sleeves, the TBLMt series feeding machine, of which the box can be directly connected to the body of an elevator, is of simple structure, floor area and handsome appearance, can directly substitute the exhaust system; advanced oval sleeve and compression mechanism of double figured pattern plate are applied, it is of simple structure and good tightness, and also is easy for replacing sleeves and can improve work efficiency; case structure and big opening form are applied, so it is easy for replacing sleeves and can perfect operation environment of workers and improve work efficiency.

The article is from : http://muyangmachineryshops.blogspot.com/2013/11/muyang-jet-filter-dust-collectors.html

Muyang is the right partner for system, bin, energy and environmental technology. The company has more than 40 years of engineering experience and silo storage expertise, specializing in material storage technology research and development, design, installation and service.



Our grain storage silos are well known wherever bulk solids are stored, processed or transported. They come in capacity from 1 ton to 18000 tons. They have various designs, are made from different materials and are adapted to the demands of the solids being stored. For a sure and continuous discharge, there are a number of special discharge devices to choose from.

The assembly type steel silo's capacity is up to 18,000 tons with comprehensive configurations to meet customers' different requirements. Complete advanced processing equipment and technology are introduced from USA to effectively ensure working accuracy and reduce damage to galvanized layer. External installable stiffeners contribute to less grain residues on silo walls. With standardized and modularized production, components and parts have a high standardization and good interchangeability, thus can be partially replaced or completely transferred.

The article is from : http://steelsilos.blogspot.com/2013/11/silo-technology-muyang.html

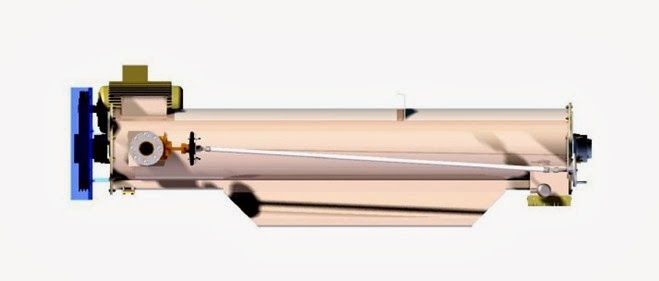

MUTZ series Conditioner developed by Muyang itself (hereinafter referred to as conditioner) is mainly applicable for preprocessing product before pelletizing or extrusion, so as to achieve good pellet quality. During conditioning, steam applied into the conditioner can ensure sufficient moisture is absorbed by the product and the temperature is rose as well, which improve product forming performance, facilitate.



The conditioner is composed of cylinders, rotors, driving device and access doors etc. The rotors are installed on the cylinders through the bearings with pedestal at their two ends. Speed variable motor is adopted to drive the driving device; there are access doors installed on the cylinders for easy maintenance and adjustment. Main components of this feed machinery, such as rotor (including main shaft, paddles and so on), cylinder are all made of stainless steel.

After fed into the conditioner from the inlet of upper cylinder, the material is blended and pushed forward by the rotors and then is discharged out from the outlet at the other end. For the material inlet of each cylinder, there is a steam inlet, from which steam of certain pressure and flow rate will be injected into the conditioner to heat and moisturize the material and complete the conditioning process. The conditioning time is determined by the rotary speed of speed variable motor and the angle of paddles as well as the structure of conditioner.

The SJHS6A Double-circle Paddle Mixers developed independently by Muyang are widely used for mixing powdery and special granular materials in feed industry.



Main features and functions
(1) Short mixing period, high mixing homogeneity The mixing homogeneity of material within 60~90S amounts to CV≤5%, reduce the mixing period and improve the productivity of feed factory. [Note1]: The material for testing here is corn powder required in JB/T9820.3, and the testing method is Methyl Violet Stain (GB/T5918). The mixing period and mixing homogeneity on the mixing machinery would be different if other material and/or testing method are used.
(2) Large variable range of filling factor The Filling factor is between 0.4~1, applicable for mixing the materials with different specific gravity and granularity in various industries.
(3) Fast discharge, little residues. The bottom adopts full-length opening structure, which contributes to fast discharge and little residues.
(4)The shaft seal adopts the unique patent sealing technology, reliable seal, no leakage and long performance life.
(5) The return air devices are equipped in the machine body, which can quickly balance the inside and outside differential pressure during feeding.
(6) The reducing motor and rotor are direct drive, compact conformation, smooth running, large rotating torque and high efficiency.

As one of best mixing machine manufacturers around the world, Muyang makes its efforts to make and involve more advanced technology to produce perfect machines.

Muyang steel structure is the world's well-known large manufacturer of steel structure with top contracting qualifications and passes the IS09001 quality system certification. Muyang steel structure provides for many global customers with industrial plants, multi-level residential, public buildings, large-span steel structure, bridge tunnel steel, oil steel, shipbuilding steel and marine power, transportation and other special steel design, fabrication and installation services.



The company has three major steel production base, with more than 500 sets of foreign advanced mechanical processing equipment, more than fifty pieces of steel structures production and maintenance lines, production capacity up to 180,000 tons, Muyang providing full service of design, production and construction.

The main products of Muyang steel structure engineering include: H beam, steel truss, box beams, box columns, lattice columns, pipe trusses, columns and other steel construction with cross products, and transportation projects such as tunnels, subway engineering steel, sheet steel and other special steel products.

Muyang provides you with difernt kinds of feed machinery, do not miss it.

Muyang has since its founding in 1967 grown into a prestigious global multinational corporation, whose activities cover design, development, fabrication and installation of the machinery & engineering of the following industries such as feed manufacturing, grain milling, bulk solids handling and storage, edible oil manufacturing, brewing industry, powder engineering, biomass energy, animal breeding and raising, industrial automation, steel structure buildings, tunneling as well as agricultural cultivation.



Muyang has become the industry standards makers or leader in these fields. Muyang is the world's only fully integrated solution provider of the whole industrial chain of agriculture and animal husbandry. Muyang currently has over 5000 employees and worldwide annual sales revenue exceeds $ 1 billion with relevant industry market share first ranking in Asia and forefront rank in the world.

Over 40 years, Muyang has been engaged in storage, grain, and feed machinery and engineering technology research and development and annually develops more than thirty new products with independent intellectual property rights, which are among world advanced level. Muyang was awarded the "2012 Annual Best Talents Enterprise" and "Best Innovating Enterprise".

Muyang also provide you with large of grinding machine, and if you are interested in it, you cannot miss it.

Congratulations on your purchase of Muyang Brand STHJ Series Type Paddle Molasses Mixer. Before you use it, there are something you should know about the operation manual and well know the safety points, different performances, requirements to installation and operation of this STHJ Series Paddle Mixer, so that you can expertly operate and use this machine, and create more benefits for you.



Firstly, a check on appearance should be made immediately when the equipment is transported to the destination. The mixing machine, which cannot be installed in predetermined place immediately, must be stored in a weatherproof place with facilities against external infringement in original packages. Secondly, startup and commissioning shall only be done by trained personnel. The operators shall know the instructions and operation regulations in provided documents before startup. Lastly, only professional persons can carry out maintenance and shall well know relevant stipulations in the documents provided by us. These stipulations are helpful for keeping the equipment in good condition, reducing wear and prolonging the service life.

The accident prevention rules in related documents must be well known and strictly obeyed. Muyang devotes to manufacturing feed machinery equipment according to the latest National Safety Standards and European Safety Standards (CE Certification Standards). Customers shall tell us the local safety rules before manufacturing. Additional expenses therefrom shall be borne by customers.
